Fortress InterlocksRL-24I-PI-CC/RL-24I-PI-DCC | Electrical Phase Indicator
Do you need a straightforward solution for monitoring phase power supplies? The RL-24i Phase Indicator by REMLIVE is the solution for you! The Phase Indicator can serve as an important last step in the LOTOTO proces, proving a clear indication of the (correct) phase sequence.
The RL-24i Phase Indicator is capable of monitoring voltages up to 1000 VAC. The door-mounted display unit informs users about each phase and indicates any sequence failures. To ensure maximum safety, there is electrical isolation between the DIN rail-mounted monitoring unit and the display unit.

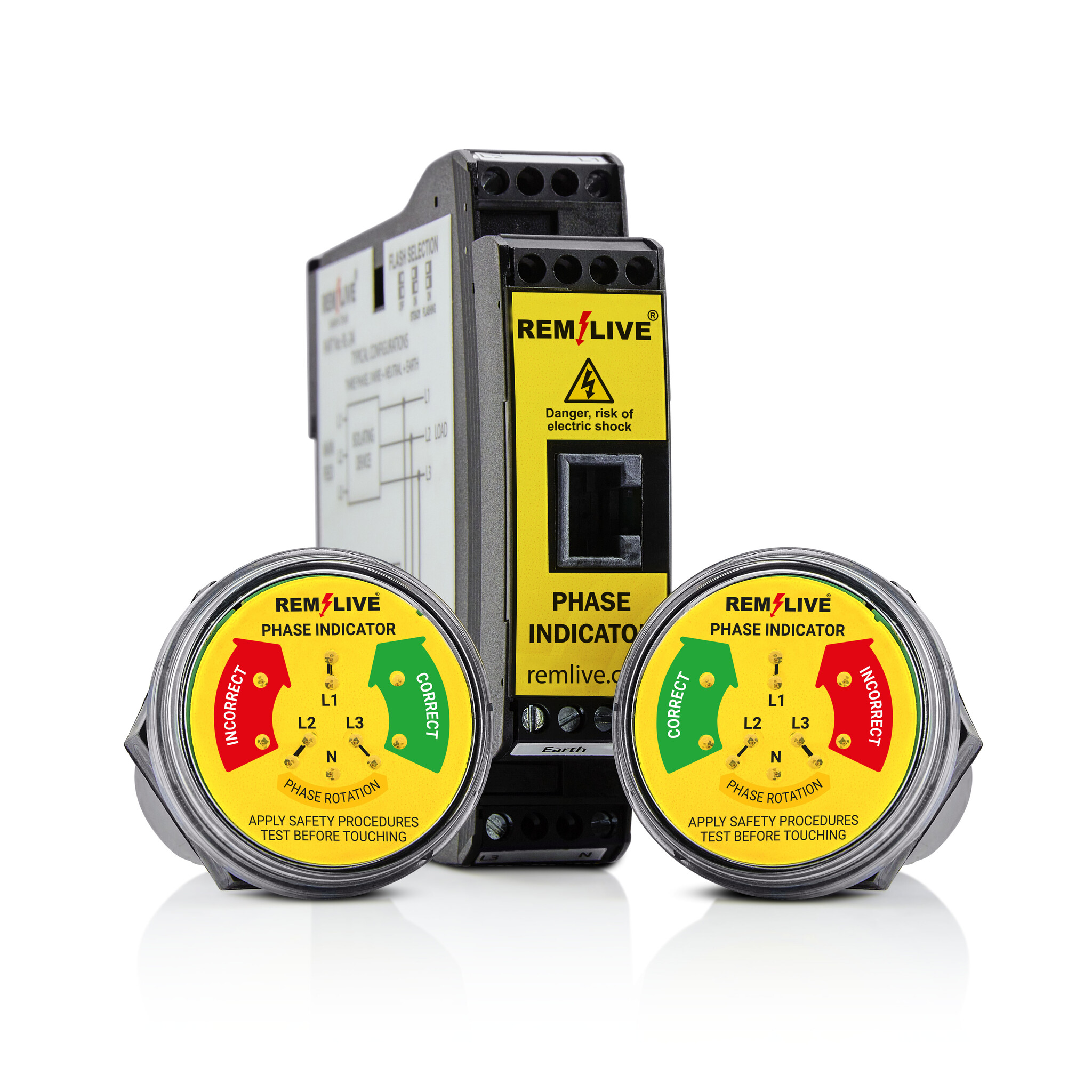

There are two versions of the RL-24i Phase Indicator, on one version the display unit will indicate clockwise correct, the other version’s display unit will indicate anti-clockwise correct.
The door-mounted display unit shows the status of each phase and verifies if the phase sequence is correct for the application. A low voltage of 3.8 volt direct current to the door unit ensures maximum operator protection. The RL-24i Phase Indicator allows you to monitor voltages and individual phase lines, even after phase isolation, with minimal current consumption. It requires no ongoing maintenance and is designed to meet IP66 standards, preserving the switchboard's ingress protection rating. The Phase Indicator is housed in a durable, V0-rated enclosure, chosen for its strength, insulation, and halogen-free properties. The Indicator can be used in temperatures between -35°C to 55°C.
The RL-24i Phase Indicator is compliant with EN 61326-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1, NEMA 4X, IEC 60204, RoHS 2011/65/EU & 2015/863.
