Description

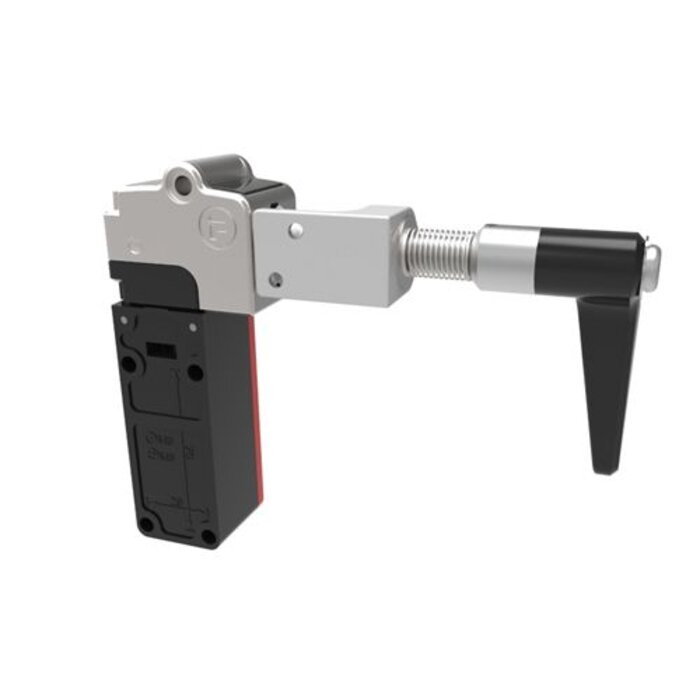

Actuator operated safety interlock switch for use in machine guarding applications.
For monitoring the position of sliding, hinged and removable protective doors.
Suitable for applications where door locking is not required (e.g. without run-on movements).
Allows for guard misalignment.
Operating handle can be rotated in 45º increments.
Extremely robust, suitable for environments with dust, vibration and debris.
Fully sealed to IP67
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
Only one unit needed to comply with PLe per EN ISO 13849-1.

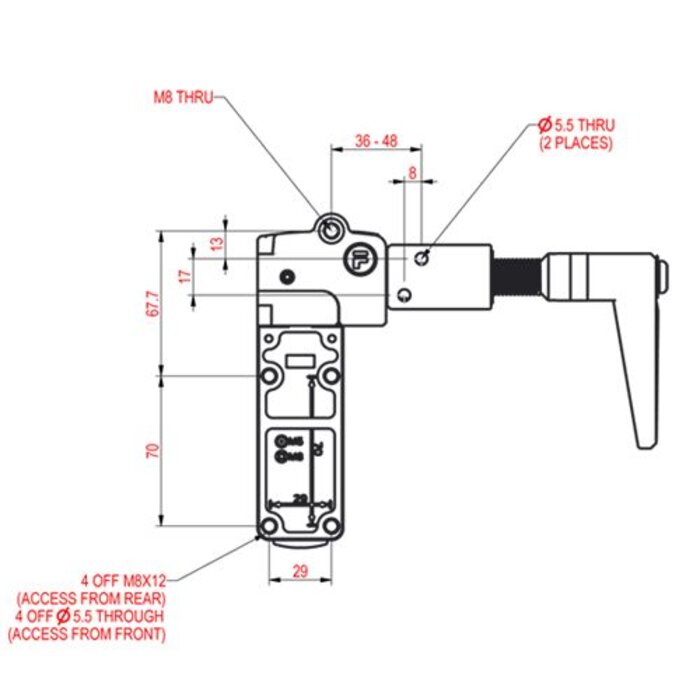

4 position fixing at 90º increments.
Wiring compartment.
Article code amGard Classic: AMSTOP024 / AMSTOP110 / AMSTOP230
Specifications
- Brand: Fortress Interlocks
- Article number: MA2M6ST401
- Type: Safety interlock switch
- Series: amGard Pro
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V AC/DC, 110V AC or 230V AC
- Solenoid voltage: -

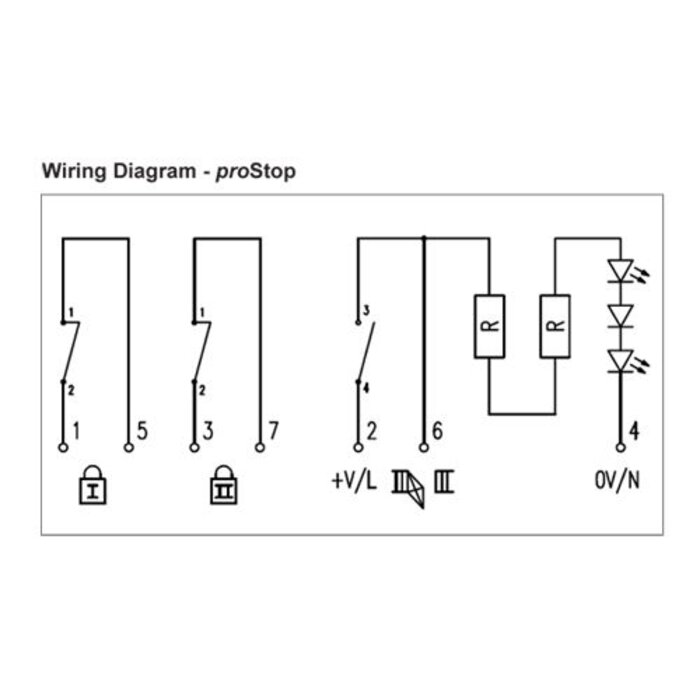

- Contact options: 2 N/C + 1 N/O
- Housing: Powdercoated steel and stainless steel
- Cable Colour: Red, black and silver
- Status LED: Yes (2)
- Operating temperature: -5°C to +40 °C
- IP rating: IP67 (IEC/EN 60529)
- MTTFd: > 100 years
- B10d: 5,000,000
- Explosion proof: No
- Connection: Self wireable
- Operation: -
- Retention force: 10,000N
- Mech life cycle: 1,000,000
- Max. switch current: 3A
- Override key: No
