BackHomeAluminium Control enclosure with 3 control elements and E-Stop
Art: THCETPXPXPXQ8

Fortress InterlocksAluminium Control enclosure with 3 control elements and E-Stop

Show all: GateBoxes
Fortress Interlocks Aluminium Control enclosure with 3 control elements and E-Stop
Fortress Interlocks Aluminium Control enclosure with 3 control elements and E-Stop
Fortress Interlocks Aluminium Control enclosure with 3 control elements and E-Stop
Fortress Interlocks Aluminium Control enclosure with 3 control elements and E-StopFortress Interlocks Aluminium Control enclosure with 3 control elements and E-StopFortress Interlocks Aluminium Control enclosure with 3 control elements and E-Stop
€591,00 (€715,11Incl. tax)
1-2 Weeks
Required fields:
    -+
    Bulk discount
    • QuantityDiscountPer pieceAdd
    • -5%€561,45-10%€531,90
    Fortress Interlocks aluminium gatebox with 3 push buttons and e-stop with 1 quick disconnector.Read more
    Payment on account or safely online
    Original products with full warranty
    Direct technical support
    All our products are TüV certified
    Description

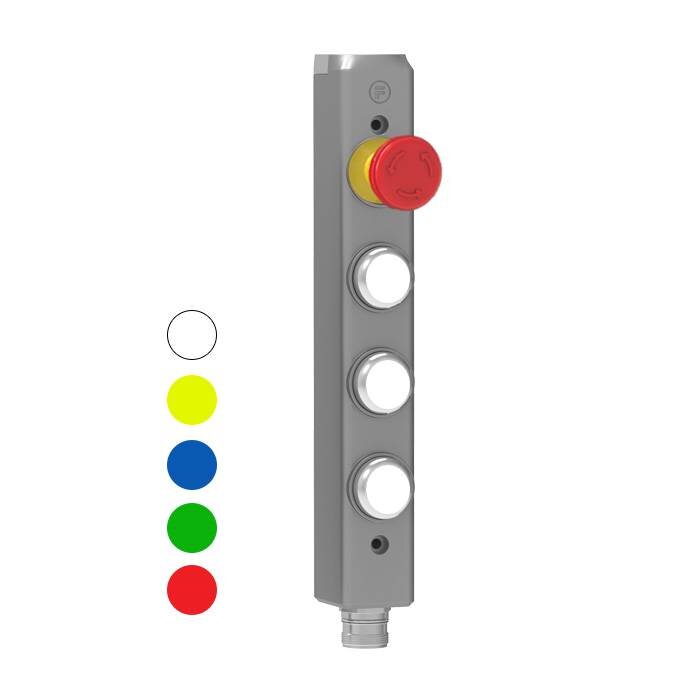

    Aluminium Gate box with 3 control elements and E-Stop

    Choose from 5 different colours illuminated push buttons.

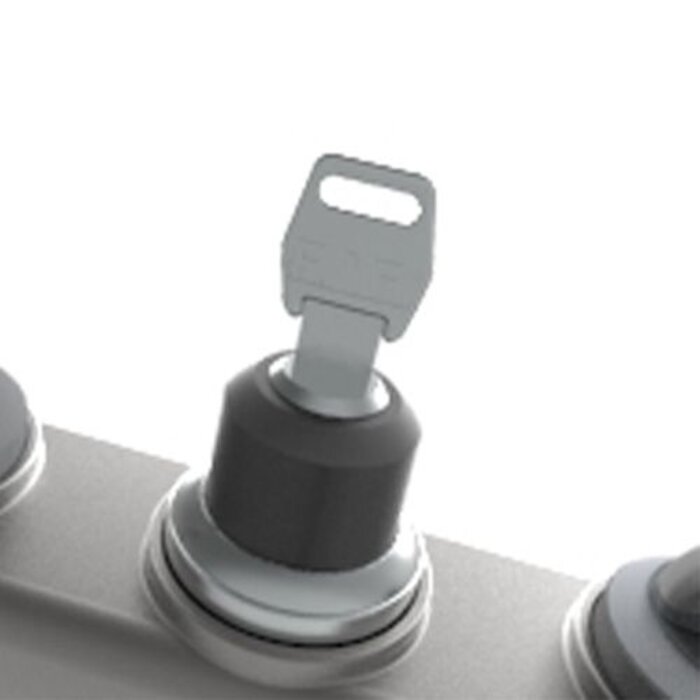

    Other control elements available on request.

    19pin M23 quick disconnector.

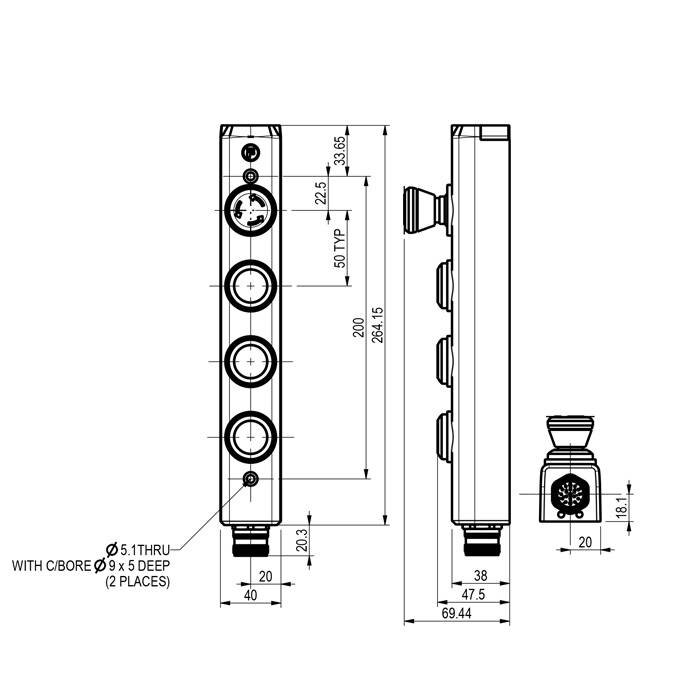

    Ergonomic 40mm aluminium enclosure.

    Fully sealed to IP65.

    Specifications
    • Brand: Fortress Interlocks
    • Article number: THCETPXPXPXQ8
    • Type: Gate box
    • E-stop: 2NC
    • Series: tGard
    • CE-mark: Machinery Directive 2006/95/EG
    • UL: UL 508 Industrial control equipment
    • Operating voltage: 24V AC/DC
    • Housing: Painted die-cast aluminium
    • Cable Colour: Dark grey
    • Operating temperature: -5°C to +40 °C
    • IP rating: IP65 (IEC/EN 60529)
    • Connection: 12pin M23 quick disconnector
