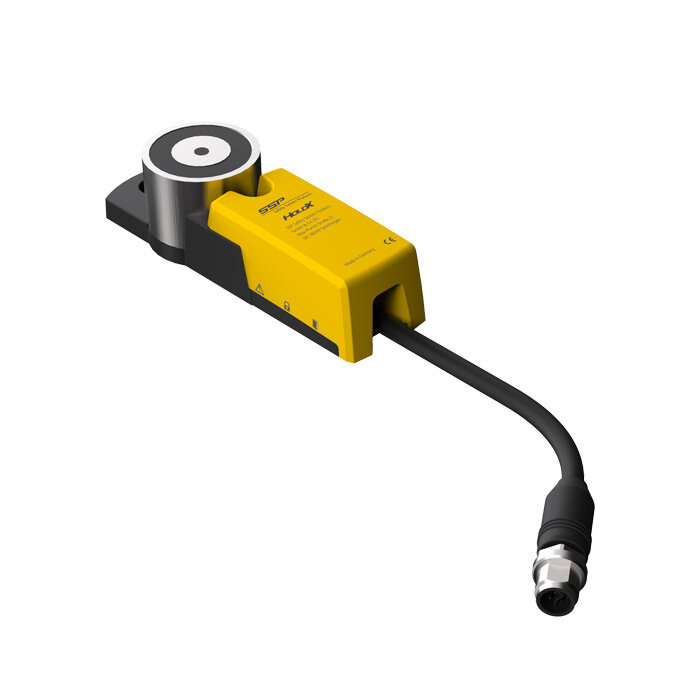

Name: Safety System Products Process Lock with RFID coded safety sensor and 600N latching force
Brand: Safety System Products
Price: 359.00 EUR
Availability: InStock

Description

Process Interlock with 600N latching force.
Durable wear-free process guard locking.
Integrated coded RFID safety sensor.
For monitoring the position of sliding, hinged and removable protective doors.
50N permanent latching magnet to prevant unitentinal opening of the guard.
Flexible adjustment of latching force from 0-50N using the free bleutooth app or desktop software.
Integrated magnetic flux measurement for contaminationdiagnosis
Large missalignment tolerance.

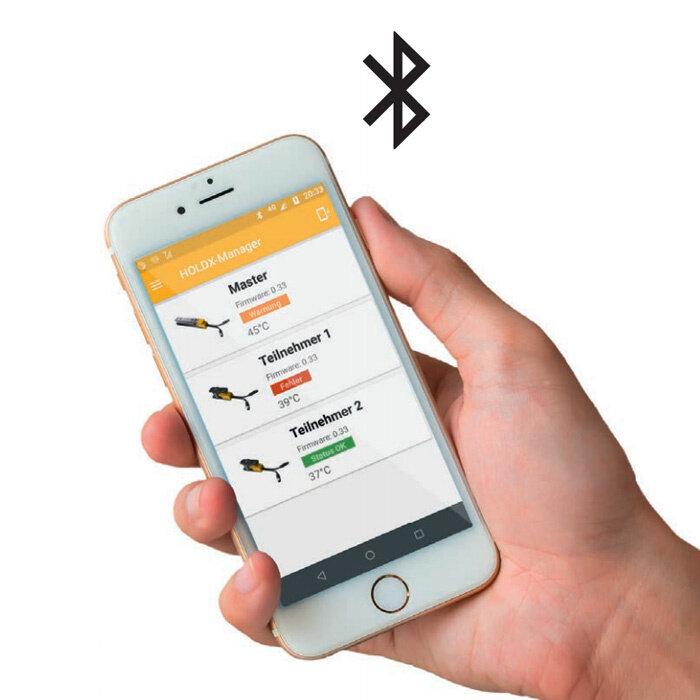

Simple Bluetooth diagnoses.
Suitable for series connection of up to 30 guard locking devices without loss of safety (due to OSSD contacts).
Including status LEDs.

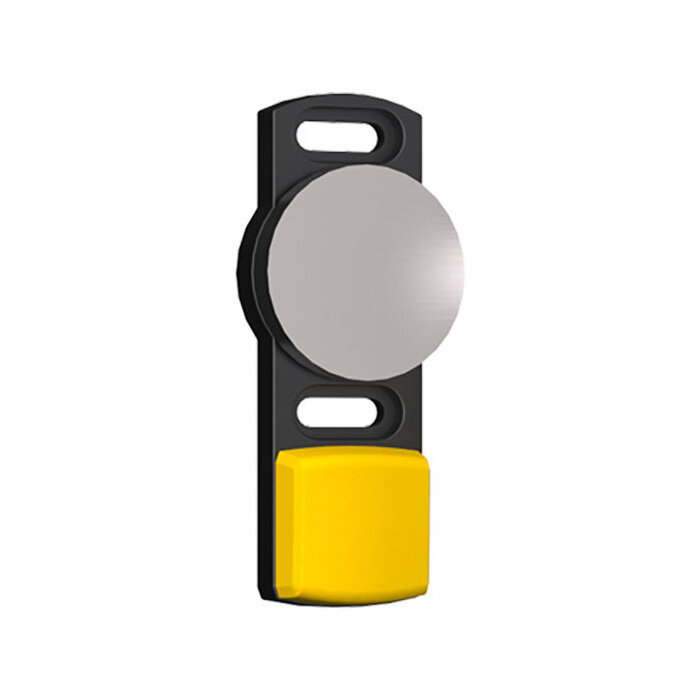

Actuator / Anchor plat with allignment features.
Response time of only 75ms.
8pin M12 long quick disconnect c/w 200mm pig-tail cable.
Can be used as a coded safety switch according to EN ISO 14119:2013.
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.

The HoldX RS can be uses as a process lock (preventing process disruption on machines without rund down time)/

Specifications

Brand: Safety System Products
Article number: RS1-P8-S-B
Type: Process Interlock
Latching Force Magnet: 600N
Permanent Magnet: 0-50N (optional)
Coding: Standard (high coded EN 14119)
Operation: Power to lock
Max operating temperature: -25°C + 55°C °C
Enclosure Rating: IP67 (IEC/EN 60529)
Color: Yellow and black
Cable Material: PBT GF30, Aluminium eloxated black, TPE, PC

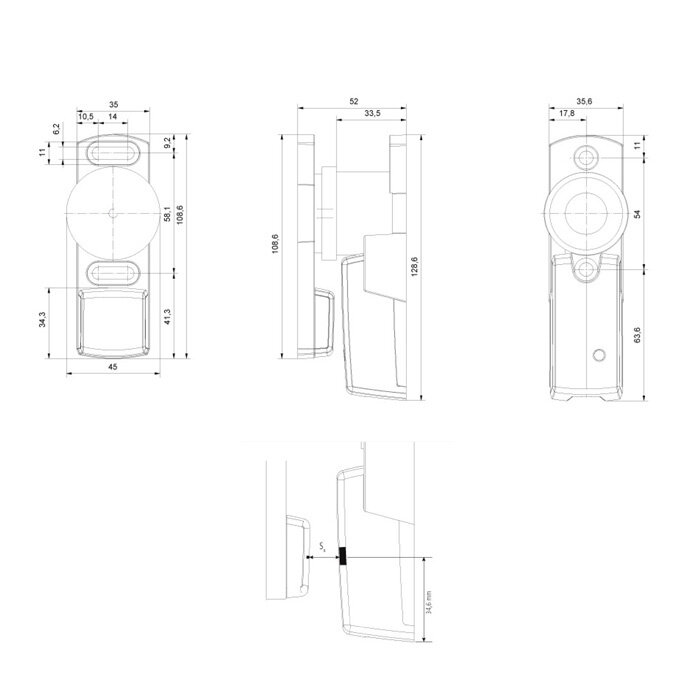

Dimensions: 45 x 34 x 128mm
Weight: 375g +125g (anchor plate)
Response Time: 75ms
Power Consumption: 16W
Operating voltage: 24 V dc (+10/-15%)
Operating distance: 6mm ON - 18mm OFF
Hysteresis: 2mm

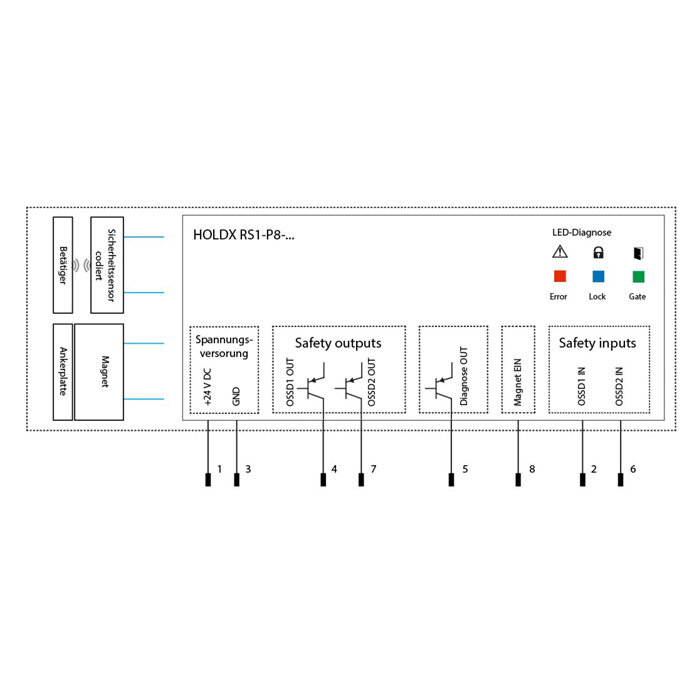

Amount safety inputs: 1x 2-channels
Amount OSSD safety output: 1x 2-channels
Amount diagnosis output: 1 Transistor (PNP)
Status LED: Yes
Connection: 8pin M12 quick disconnect, 200mm cable
Max. switching current per safety output: 100 mA (DC-12/DC-13)
Bluetooth: Yes
Performance Level (EN ISO 13849-1: 2015): PLe
SIL (EN IEC 62061: 2005): SIL 3
Category (EN ISO 13849-1: 2015): Cat .4
PFHd: 2.24 x 10⁻⁹
Service life (EN IEC 62061): 20 Years

Safety System ProductsProcess Lock with RFID coded safety sensor and 600N latching force
