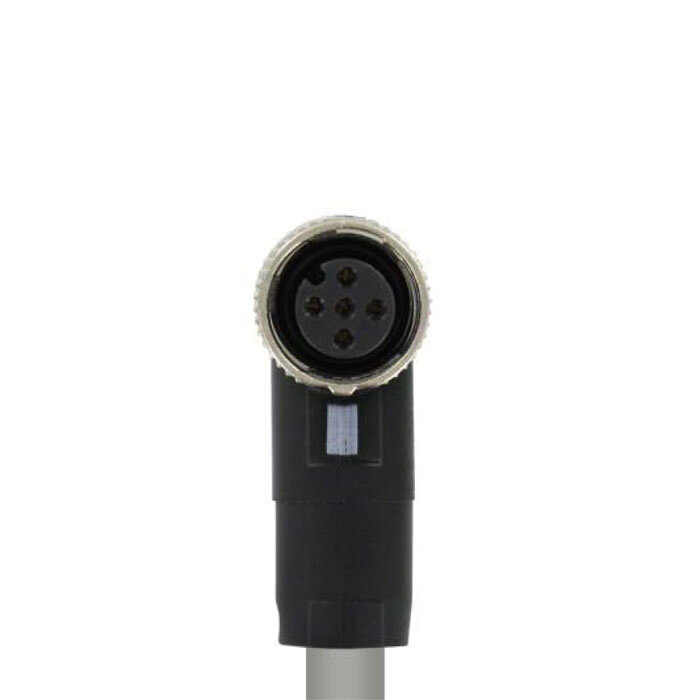

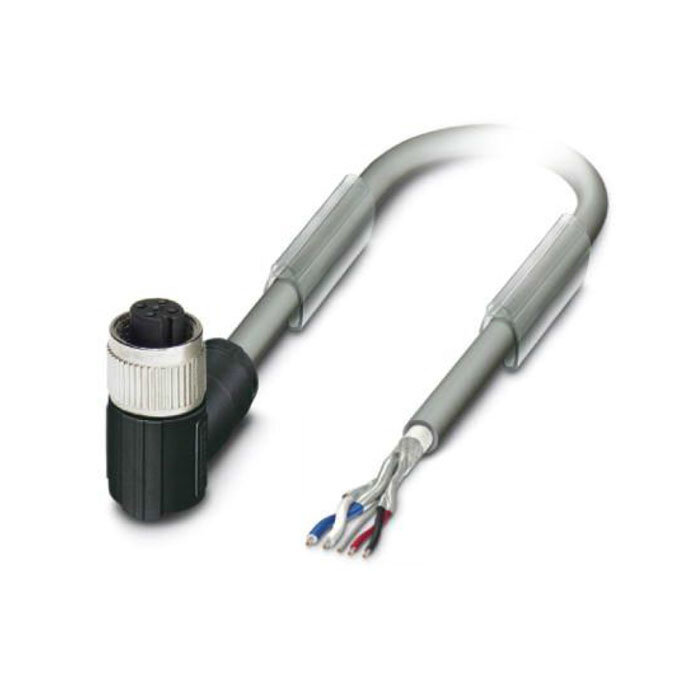

InxpectM12 5-pin 90° female connector with PVC Cable
Show all:
Cables,Radar Safety Systems
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description

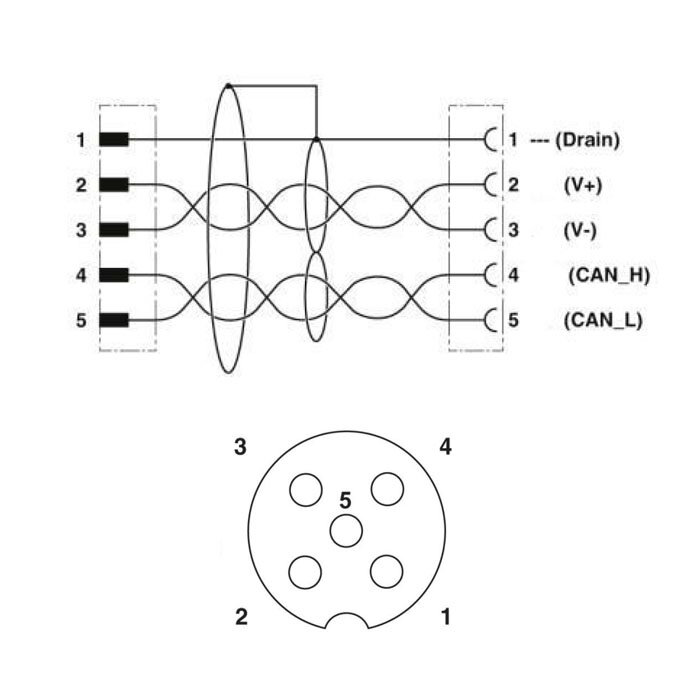

- Side 1: Connector M12, 5-pole (female)
- Side 2: Open end
- Constructed from PVC
- 90° angled connector
- A-coded.
- Fully shielded cable
- Available in 5, 10 or 15m.
Specifications
- Brand: Inxpect
- Article number: 08000003
- Connector side 1: M12, 5-pin, angled connector
- Type Side 1: Straight (0°)
- Werkstoff der Kupplungsmutter: Nickel-plated brass
- Coding: A-coded
- Cable Material: PVC
- Cable length: 5m, 10m or 15m
- Cable Colour: Black
- Cross section: 0,25mm2
- IP value: Fully shielded
- Minimum Service Temperature ° C: -20 °C
- Maximum Service Temperature ° C: +80 °C (use high temp lubricants)
- Rated Current: 3 A
- Contact resistance: ≤10mΩ
