Non-contact coded electronic safety sensor SS-S

0 reviews

Delivery time 1-2 Weeks

Image 1 / 7

0 reviews

in stock

Delivery time 1-2 Weeks

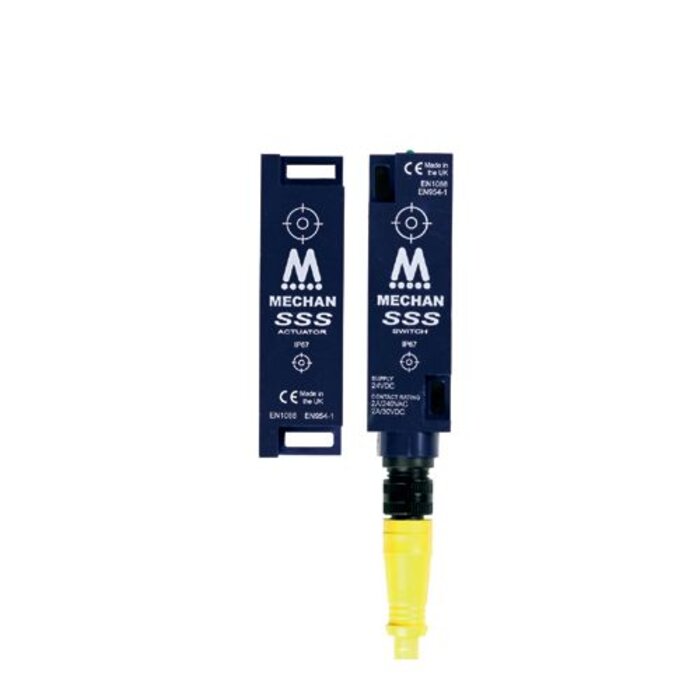

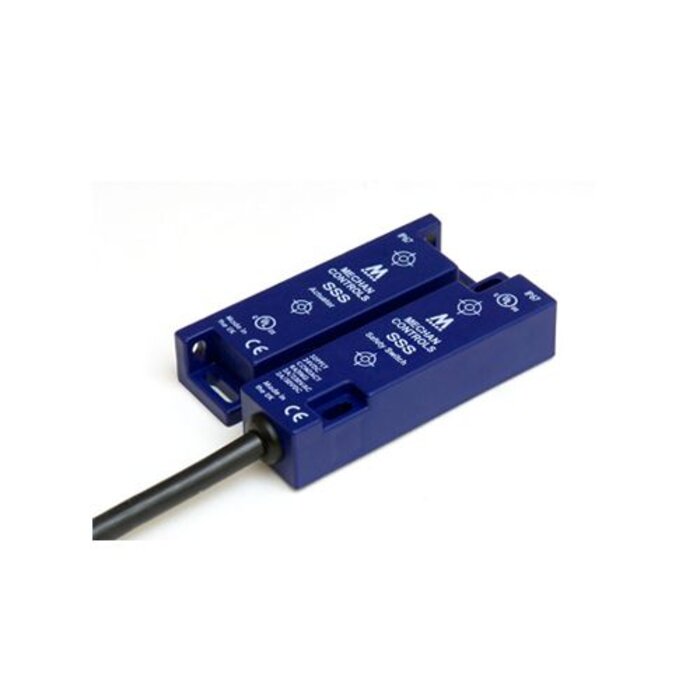

Non-contact coded electronic safety sensor

€164,00

Contact options:

Operating voltage:

Connection:

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Specifications

Type:	Non-contact electronic
Series:	S series, stand alone
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	24V DC
Contact options:	2 N/O, 1 N/O -1 N/C
Housing:	ABS

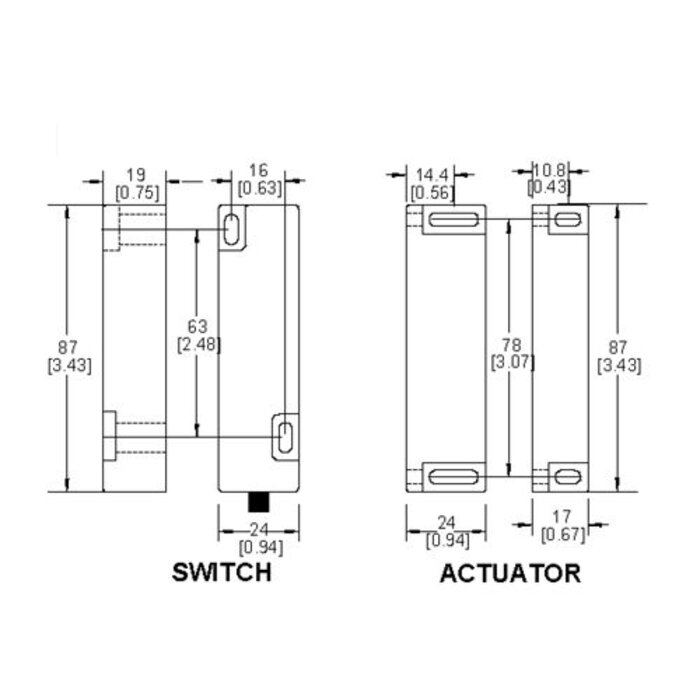

Dimensions:	87 x 19 x 24mm
Color:	Blue
Operating distance:	7mm ON - 12mm OFF
Status LED:	Yes (2)
Operating temperature:	-10°C to +55 °C
IP rating:	IP67 (IEC/EN 60529)
MTTFd:	> 100 Years
B10d:	2,000,000
Explosion proof:	No

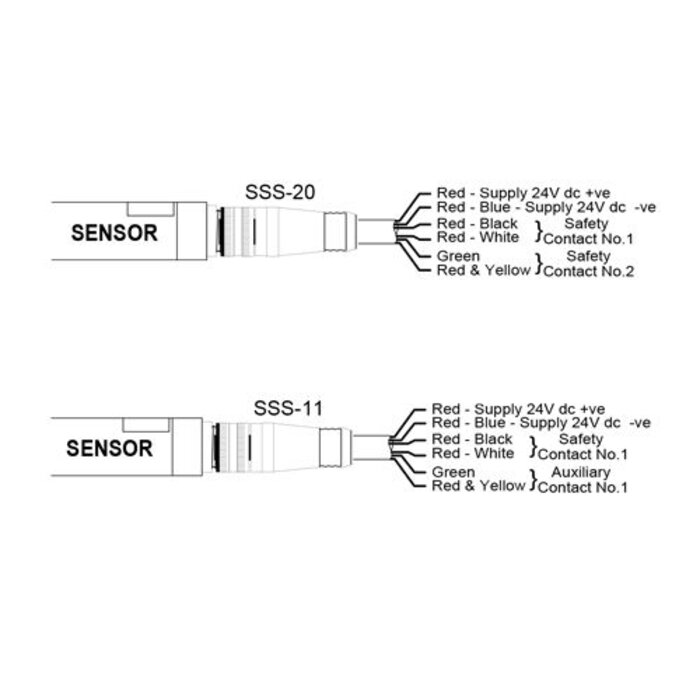

Connection:	Pre-wired cable or QD

Non-contact coded electronic safety sensor for use in machine guarding applications.

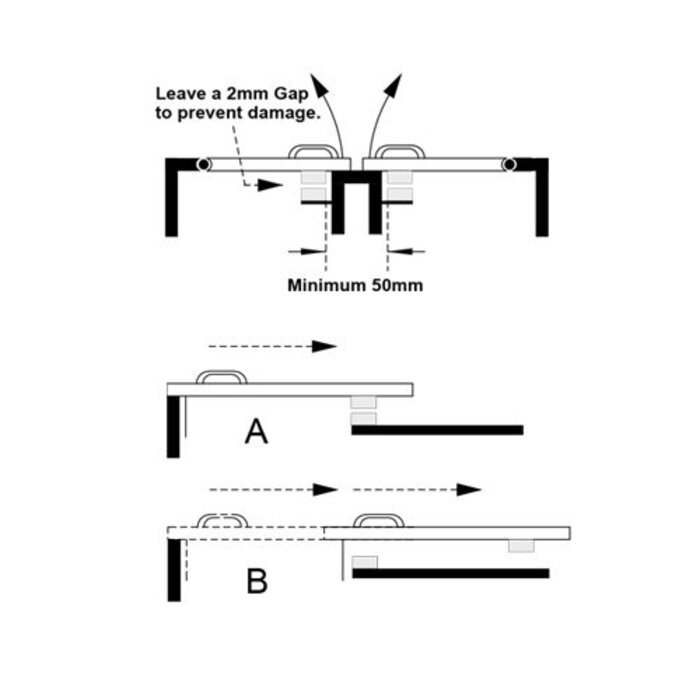

For monitoring the position of sliding, hinged and removable protective doors.
Suitable for applications where door locking is not required.

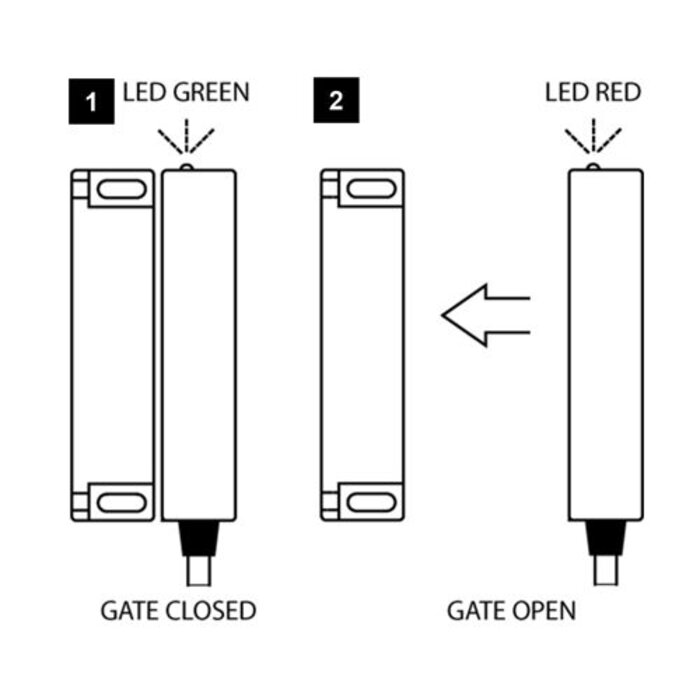

Dual colour LED for simple diagnostics.

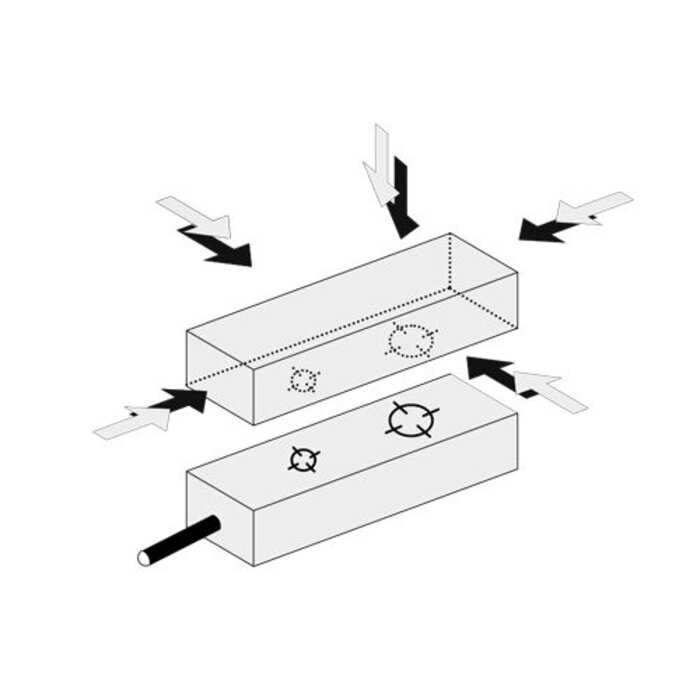

Tamper-resistant radio frequency operated electronic system.
Easy to mount.
Manufactured from robust ABS.
Both switch and actuator are fully sealed to IP67
Suitable for use in harsh environments (easy to clean).
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.

Type:	Non-contact electronic
Series:	S series, stand alone
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	24V DC
Contact options:	2 N/O, 1 N/O -1 N/C
Housing:	ABS
Dimensions:	87 x 19 x 24mm
Color:	Blue
Operating distance:	7mm ON - 12mm OFF
Status LED:	Yes (2)
Operating temperature:	-10°C to +55 °C
IP rating:	IP67 (IEC/EN 60529)
MTTFd:	> 100 Years
B10d:	2,000,000
Explosion proof:	No
Connection:	Pre-wired cable or QD
