Non-contact magnetic safety switch MS1

0 reviews

in stock

Image 1 / 4

0 reviews

in stock

Non-contact magnetic safety switch.

€125,00

Contact options:

Operating voltage:

Connection:

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Specifications

Type:	Non-contact magnetic
Series:	Magnasafe, stand alone
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	30V DC or 230V AC
Contact options:	2NO + NC , 2NO, 1NO + 1NC or 1NO
Housing:	ABS

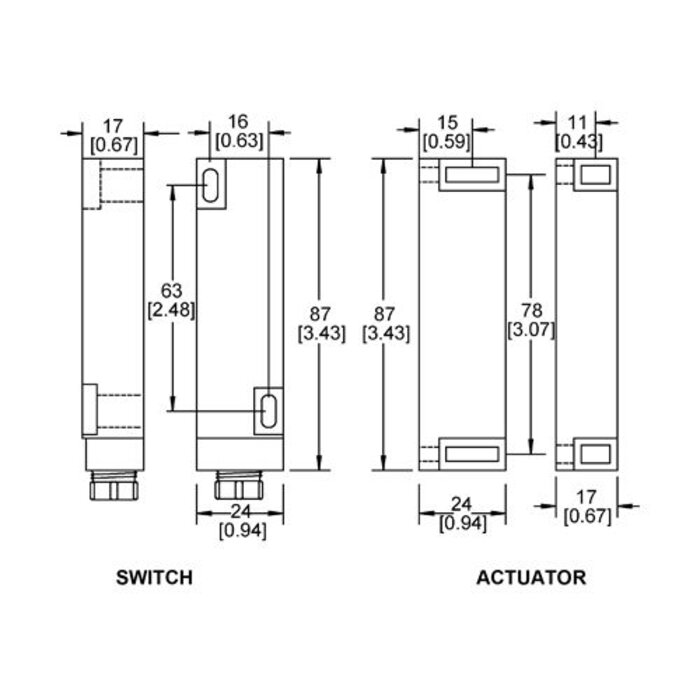

Dimensions:	87 x 24 x 19mm
Color:	Red
Operating distance:	10mm ON - 25mm OFF
Status LED:	No
Operating temperature:	-10°C to +55 °C
IP rating:	IP67 (IEC/EN 60529)
MTTFd:	> 100 Years
B10d:	2,000,000
Explosion proof:	No
Connection:	Pre-wired cable or QD

Magnetically operated non-contact safety switch for use in machine guarding applications.

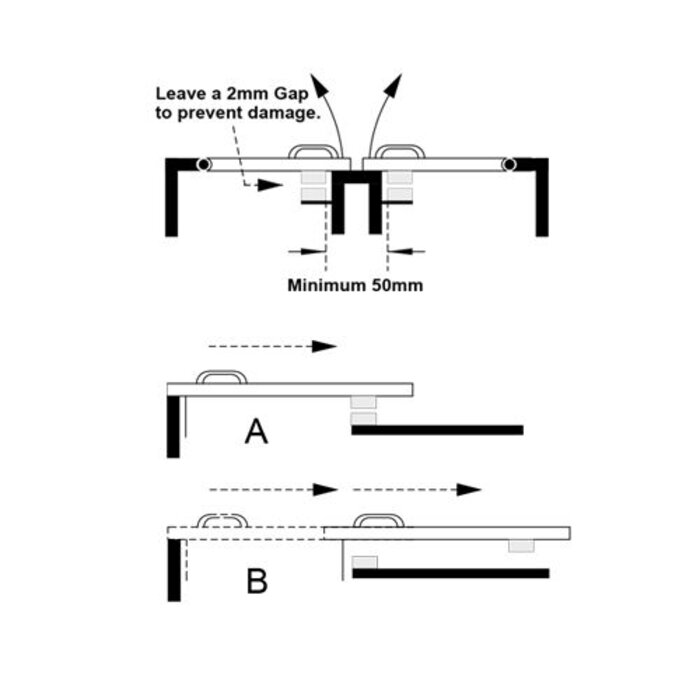

For monitoring the position of sliding, hinged and removable protective doors.
Suitable for applications where door locking is not required.
Easy to mount.
Tolerant to misalignment.
Manufactured from robust ABS.
Both switch and actuator are fully sealed to IP67
Suitable for use in harsh environments (easy to clean).
In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.

Type:	Non-contact magnetic
Series:	Magnasafe, stand alone
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	30V DC or 230V AC
Contact options:	2NO + NC , 2NO, 1NO + 1NC or 1NO
Housing:	ABS
Dimensions:	87 x 24 x 19mm
Color:	Red
Operating distance:	10mm ON - 25mm OFF
Status LED:	No
Operating temperature:	-10°C to +55 °C
IP rating:	IP67 (IEC/EN 60529)
MTTFd:	> 100 Years
B10d:	2,000,000
Explosion proof:	No
Connection:	Pre-wired cable or QD
