Art: SAFIX I3-X-5M / T5

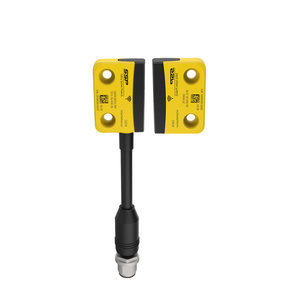

Safety System ProductsNon-contact uniquely coded RFID safety sensor SAFIX I3-X
Payment on account or safely online
Original products with full warranty
Direct technical support
All our products are TüV certified
Description
- Non-contact uniquely coded safety sensor for use in machine guarding applications.
- Can be used as a coded safety switch according to EN ISO 14119:2013.
- Manual reset.
- For monitoring the position of sliding, hinged and removable protective doors.
- Suitable for applications where door locking is not required.
- OSSD Safety Sensors for wiring multiple sensors in series without compromising safety (max. 30 switches)
- EDM / Start-input
- 2 dual channel safety contacts and 1 monitoring contact.
- 24V DC +/- 10%.
- Status LED in three colors.
- Easy to mount.
- Manufactured from robust PBT.
- Both switch and actuator are fully sealed to IP67 and IP69K.
- ECOLAB certified.
- In combination with a safety guard monitor for protection up to safety level PLe per EN ISO 13849-1 or up to SIL 3 per EN 62061.
- Tamper resistant RFID system.
Specifications
- Brand: Safety System Products
- Article number: SAFIX I3-X-5M / T5
- Type: Non-contact RFID
- Series: SAFIX
- CE-mark: Machinery Directive 2006/42/EC
- UL: UL 508 Industrial control equipment
- Operating voltage: 24V DC +/- 10%
- Contact options: 2 N/O -1 N/C (OSSD)
- Housing: PBT
- Dimensions: 36 x 13 x 26mm (45g)
- Cable Colour: Orange
- Operating distance: 8mm - 18mm (12mm missalignment)
- Status LED: Yes
- Operating temperature: -25°C to +70 °C
- IP rating: IP67 / IP69K (IEC/EN 60529)
- MTTFd: > 20 Years
- B10d: 2,000,000
- Explosion proof: No
- Connection: Pre-wired cable or QD
