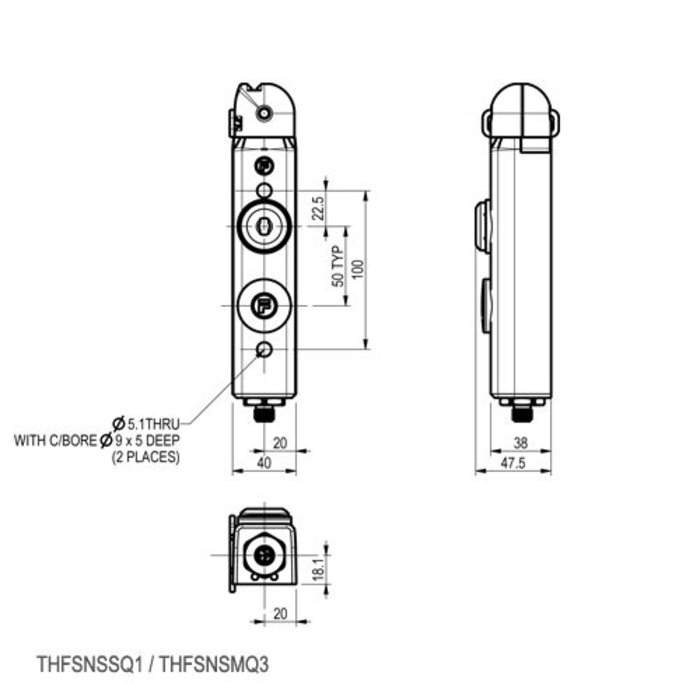

Actuator operated aluminium safety switch with personal safety key PLd

0 reviews

Delivery time 2 weeks

Image 1 / 6

0 reviews

in stock

Delivery time 2 weeks

Fortress Interlocks tGard actuator operated aluminium safety switch suitable with personal safety key for PLd / SIL2 applications.

€224,00

Naam Contact options:

Cable:

Key:

- +

Prefer a quote first? Click on "request quote" in your shopping cart

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Specifications

Type:	Safety interlock switch
Series:	tGard
CE-mark:	Machinery Directive 2006/42/EC
UL:	UL 508 Industrial control equipment
Operating voltage:	24V DC
Solenoid voltage:	-
Contact options:	2 N/C or 2 N/C + 1 N/O
Housing:	Painted die-cast aluminium
Color:	Dark grey
Status LED:	Yes (only on 2 N/C + 1 N/O)
Operating temperature:	-5°C to +40°C
IP rating:	IP65
MTTFd:	-
B10d:	5,000,000
Explosion proof:	No
Connection:	Wiring compartment or quick disconnector
Operation:	-
Retention force:	2,500N
Mech life cycle:	1,000,000
Max. switch current:	0.5A
Override key:	-

Actuator operated safety interlock switch for use in machine guarding applications.
Switch is provided with a safety key adaptor to prevent employees getting trapped inside a guarded area / machine.
For monitoring the position of sliding, hinged and removable protective doors.
4 position fixing at 90º increments.
Suitable for applications where door locking is not required (e.g. without run-on movements).
Fully sealed to IP65.
In combination with a safety guard monitor for protection up to safety level PLd per EN ISO 13849-1 or up to SIL 2 per EN 62061.
Painted die-cast aluminium enclosure.
Available with M12 (5 pin or 8 pin) quick disconnector.
