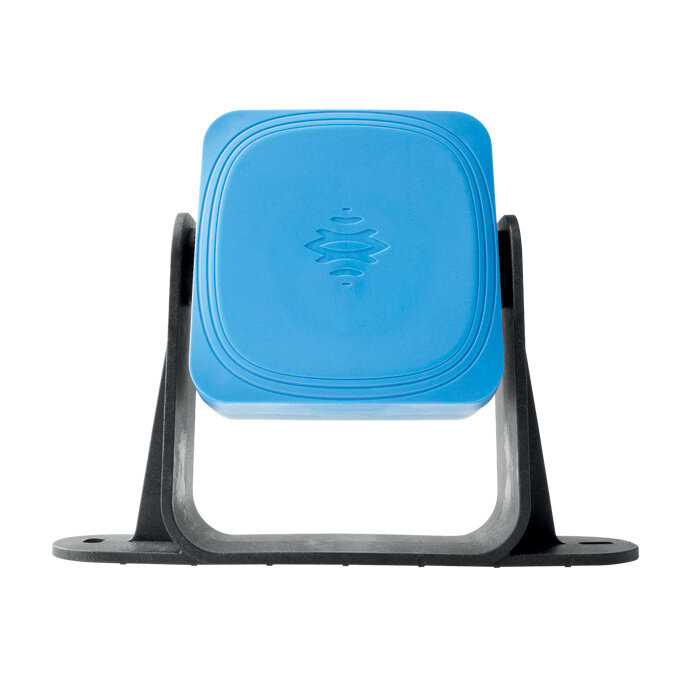

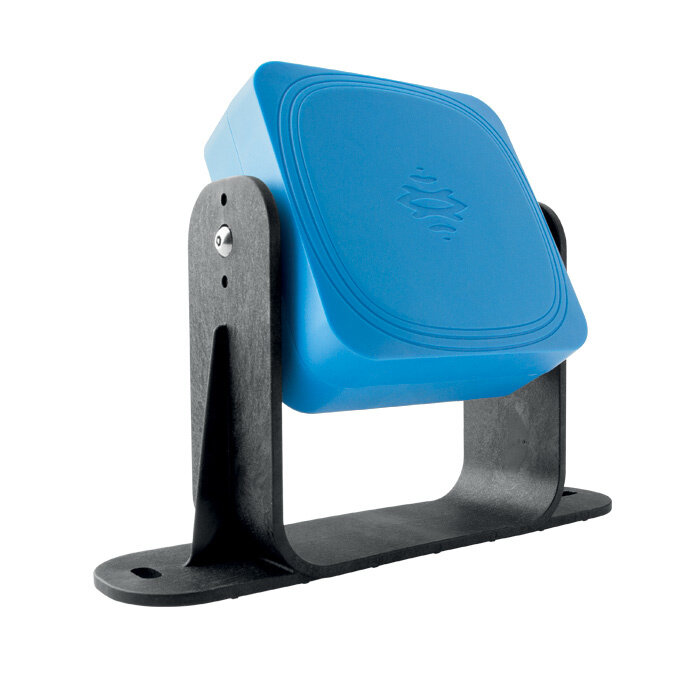

Smart Sensor S101A for safety radar system Inxpect 100 SERIES
Image 1 / 9
Smart Sensor S101A for safety radar system Inxpect 100 SERIES
Smart Sensor S101A for safety radar system Inxpect 100 SERIES
Smart Sensor S101A for safety radar system Inxpect 100 SERIES
Smart Sensor S101A for safety radar system Inxpect 100 SERIES
Smart Sensor S101A for safety radar system Inxpect 100 SERIES
Smart Sensor S101A for safety radar system Inxpect 100 SERIES
Smart Sensor S101A for safety radar system Inxpect 100 SERIES
Smart Sensor S101A for safety radar system Inxpect 100 SERIES
Smart Sensor S101A for safety radar system Inxpect 100 SERIES
€550,00
(€665,50 Incl. tax)
  • Article code 90202011
  • Buy 2 for €522,50 each and save 5%
  • Buy 4 for €508,75 each and save 7,5%
  • Buy 5 for €495,00 each and save 10%
- +
Add to cart
Prefer a quote first? Click on "request quote" in your shopping cart
Ordered before [time], delivered tomorrow! You got 03:39 hours
Request for quotation
Full warranty on all our products
  • Description
    • Smart sensor for LBK safety radar system.
    • Formerly known as the LBK sensor
    • Insensitive to dust, rain, light, dirt, steam and shock.
    • Series wiring of up to 6 sensors.
    • Warning zone to signalize approaching objects.
    • Integrated muting for the whole system or for individual sensors.
    • Restart blocking prevents the machine from restarting when there are people in the safeguarded zone.

    • Choose between 2 different fields of view:
      Sensor detection angle, protection zone 1: 110° horizontal, 30° vertical.
      Sensor detection angle, protection zone 2: 50° horizontal, 15° vertical.
    • Max detection range of the sensor: 4 m.
    • Min detection range of the sensor: 1 m.
    • Maximum protection zone (with 6 sensors): 15 m x 4 m.
    • The 100 SERIES radar system consists of a control unit and up to six S101A sensors.
    • The 100 SERIES radar system is suitable for protection up to safety level PLd Cat. 2 per EN ISO 13849-1 or up to SIL 2 per EN 62061.
  • Specifications
    Type: Sensor radar system
    IP rating: IP67 (IEC/EN 60529)
    Housing: PA66 and glass fiber
    Color: Blue / Black
    Detection angle: Width 50° of 110°, height 15° of 30°
    Dimensions: 125 x 165 x 53mm
    Protection range: min 1m - max. 4m
    Operating temperature: -40°C to +60 °C
    Fixing: Including mounting bracket for fixing to the machine or to the floor
    Connection: 5pin M12 (1x male and 1x female)
    Bandwith operational frequency: 24 GHz
    Operating voltage: 12 V dc ± 20%, through controller
    Outputs: -
    Inputs: -
